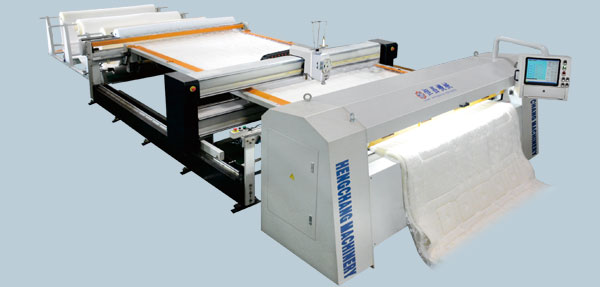

Panel Cutter Special Function:
1. With locakstitch sewing head, diagnostic testing and adjustable presser
plae in different thickness.
2. Memory restart all pattern after stop quilting.
3. 360°Tack & Jump and simple pattern, total 200 pattern.
4. Daily output counter and total output counter.
5. Needle arrangement and pattern showing.
6. Automatic needle life. Air thread cutting and thread brake detector.
7. Pattern compensation and correction.
8. Panasonic servo motor drive operations.
9. Capable pattern-designing software with pattern scanner input. 10. Automatic material feeding and cutting.
Technical Specification:
| Quilt width |
≤80mm |
| Quilting thickness |
130/21 |
| Needle size |
2-6 mm |
| Stitch size |
2500 RPM |
| Rotation speed of needle |
40-120 m/h |
| Production speed |
380V/220V 50Hz/60Hz |
| Power supply |
8.8 KW |
| Power |
3-phase,380V,50Hz |
| Volage |
3-phase,220V 60Hz |
| Gross Weight |
3500 Kg |
| Size (L x W x H) |
5200X1500X2000(mm) |
Panel Cutter Applications:
Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and more.
Products:
 |
 |
 |
 |
| 19-inch Liquid Crystal Display |
Quilting Machine Head |
Adjustable Material Holder |
Quilt pattern |
|
