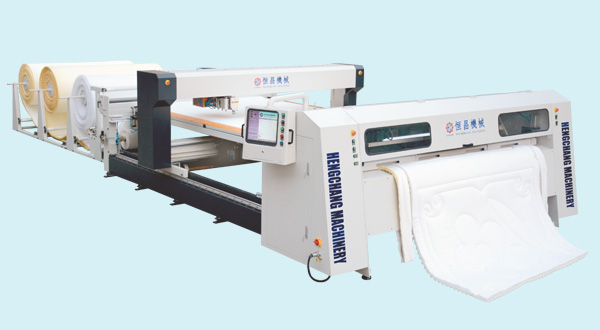

HC-S3000 Single Needle Quilting Machine

Special Function
Advantage quality lock stitch sewing head, rotating speed can up to 3000 RPM.
Diagnostic testing for thread broken and pattern compensation.
Adjustable presser plate in different thickness.
Memories restart all patterns after stop quilting.
360°T&J and simple pattern ,more than 200 patterns.
Capable pattern-designing software can adopt various quilting file and quilting system.
Daily output counter and total output counter.
Needle arrangement and patter showing.
Pattern compensation and correction.
Servo Driver motor operations.
Automatic material feeding and cutting device.

Technical Specification

Size (length*width*height)	8600 x 3740 x 1900(mm)
Weight	3500kg
Quilting thickness	≤70mm
Quilt width	≤2350mm
Rotation speed of needle	2500 Rpm
Production speed	40-120 m/h
Needle type	130/21
Voltage	3-phase,380V,50Hz 3-phase,220V 60Hz
Stitch	2-6 mm
Power	8.8 KW

Feature Icon

Imported large bobbin	Imported quilting head	Panasonic servo control	New computer control system

Applications:
Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and more.
